retrospool

your AS/400 reports, as PDFs, over the web

The old world

Business reports on IBM i (née AS/400) land in output queues (OUTQ), where a Windows box running an ACS printer session has to "claim" a device and drain them onto paper — or into a folder, if someone rigged it. The trick: the host queues spool files in *READY whether or not any printer is alive. The session was never actually required.

retrospool is a self-hosted web application built to replace that whole ritual: it reads spool bytes directly via JTOpen — no TN5250E negotiation, no device-name juggling, no port 992 — and turns them into PDFs. The capture-and-render core and credentialed operator console are built; the queue poller that drains a live OUTQ on a schedule, and export fan-out to S3 / SFTP / FTPS, are the next phases (see status).

The pipeline

IBM i OUTQ ──▶ poll (JTOpen) ──▶ sniff format ──▶ split concatenated PCL
              [poller: planned]                       │
                       ┌───────────────────────────────┤
                       ▼                               ▼
              store original bytes              render PCL ─▶ PDF
              (.pcl / .pdf / .bin)            (GhostPDL sidecar)
                       │                               │
                       └───────────┬───────────────────┘
                                   ▼
                   tenant-scoped capture (dedup by sha256)
                                   │
                                   ▼
              export fan-out: S3 / SFTP / FTPS  [planned]

The shaded middle band — sniff → split → store → render → capture — is built and covered by end-to-end tests today. The queue poller that feeds it, and the export fan-out that drains it, are the next phases.

What works today v0.2.0 · verified

The backend is exercised by unit + Testcontainers integration tests against real Postgres, MinIO, and the actual gpcl6 sidecar. The production frontend bundle is browser-driven to generate the product views below, with console and page errors treated as failures.

Format sniffingSpool files are DEVTYPE(*USERASCII) opaque byte streams — PCL, PDF, plain text, or mystery bytes. Detected from the first 16 bytes.
PCL splittingConcatenated reports split on ESC E printer resets, guarded by a preceding form feed (0x0C) to dodge false positives inside binary sections.
Rendering without license riskGhostPDL (gpcl6) is AGPL, so it runs as an isolated sidecar container behind a tiny HTTP shim — never on the JVM classpath. A Gradle licenseGate task fails the build if it, or any banned artifact, sneaks in.
Originals are sacredEvery PCL capture keeps both artifacts: the original .pcl (source of truth, re-renderable) and the rendered .pdf. A render failure never loses a report.
Multi-tenant by constraintOne tenant per company; every query tenant-scoped; dedup within-tenant only via unique(tenant_id, sha256, segment). A reflection test gate fails the build if a repository query forgets its tenantId.
Idempotent by constructionRestarts, re-polls, and races all collapse into the same database constraint. Duplicates are skipped, never errors.
Operator consoleA responsive React admin surface for dashboard counts, submission review, tenant settings, capture downloads, and ephemeral IBM i sign-on tests, guarded by Authentik forward-auth identity.

See it work

These are screenshots of the actual production-built admin console, not hand-drawn mockups. A Playwright harness launches the app and supplies deterministic API fixtures; all company names, hosts, IDs, and report details shown here are invented demo data.

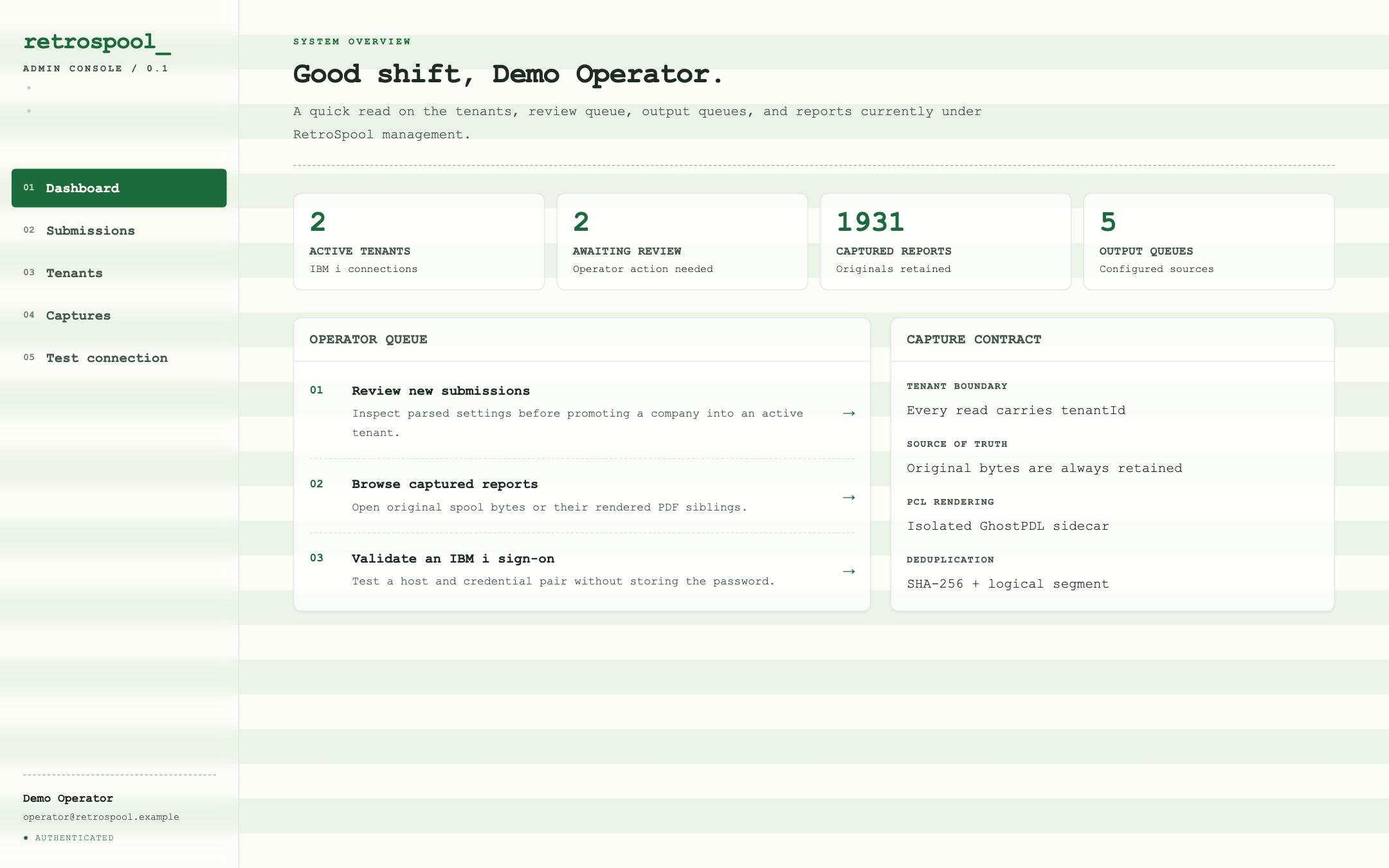

RetroSpool admin dashboard with a greenbar-inspired sidebar, tenant and capture totals, operator action queue, and capture contract. — **Operator dashboard** — a shift-at-a-glance view of active tenants, pending approvals, captured reports, configured queues, and the next useful actions.

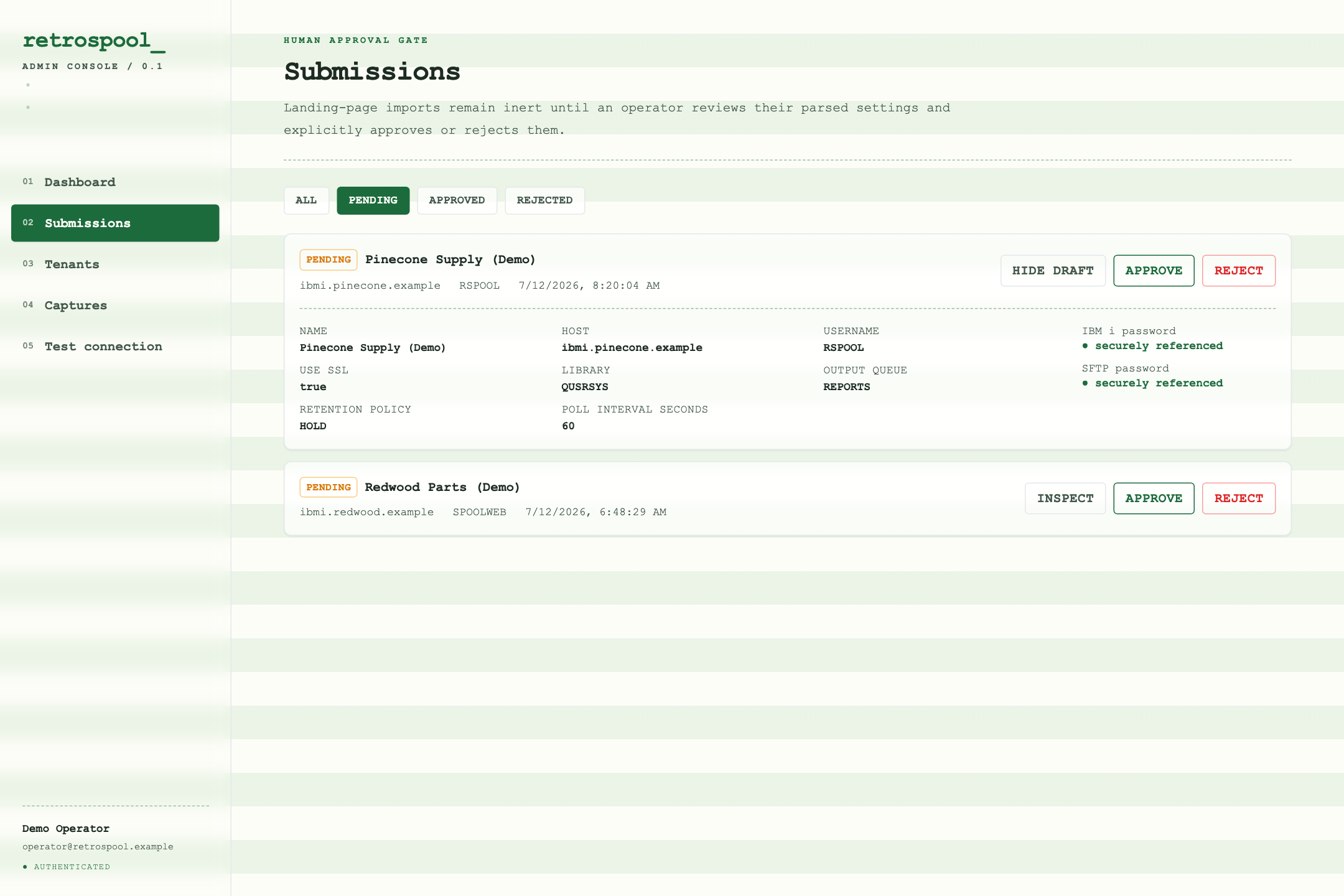

RetroSpool submissions review queue with an expanded pending company draft, write-only credential indicators, and explicit approve or reject actions. — **Human approval gate** — inspect parsed settings and write-only secret references before explicitly promoting a pending submission into a tenant.

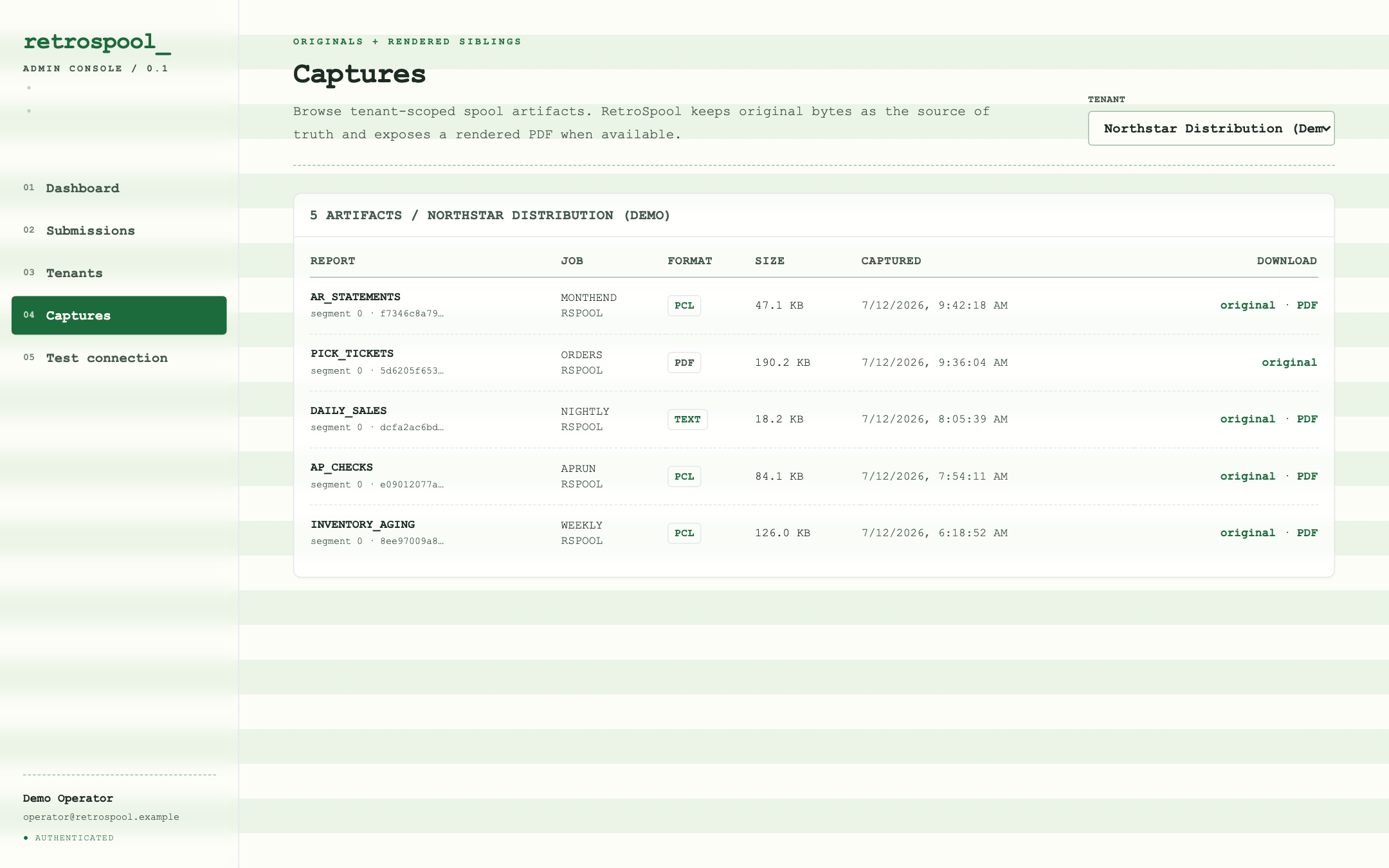

RetroSpool captures table listing report names, IBM i jobs, detected formats, sizes, capture times, and original or PDF download links. — **Tenant-scoped captures** — browse original spool artifacts and their rendered PDF siblings without crossing company boundaries.

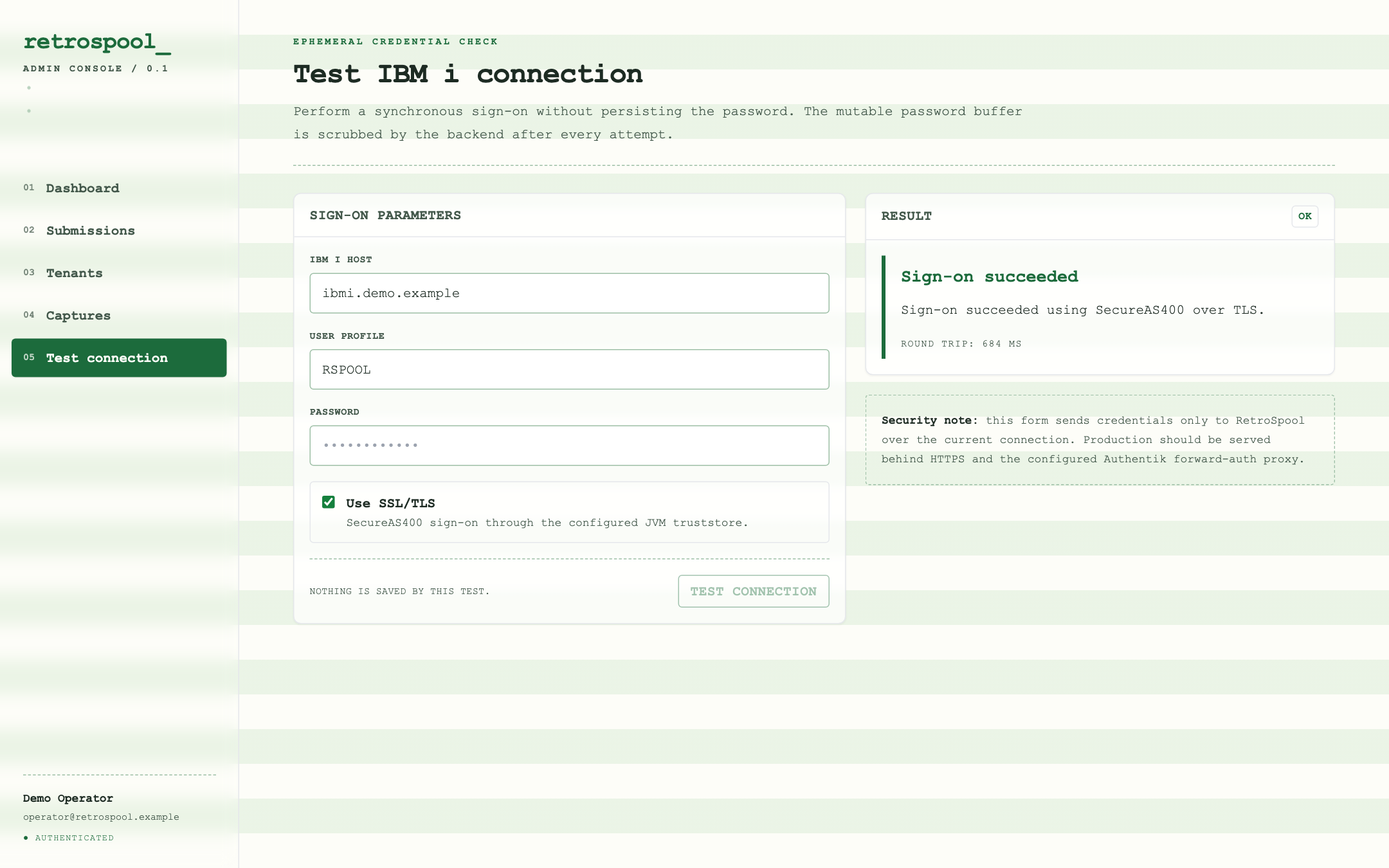

RetroSpool Test IBM i connection screen showing TLS sign-on parameters and a successful SecureAS400 result with round-trip time. — **Ephemeral connection test** — exercise the real JTOpen sign-on path and report a useful result while never persisting the submitted password.

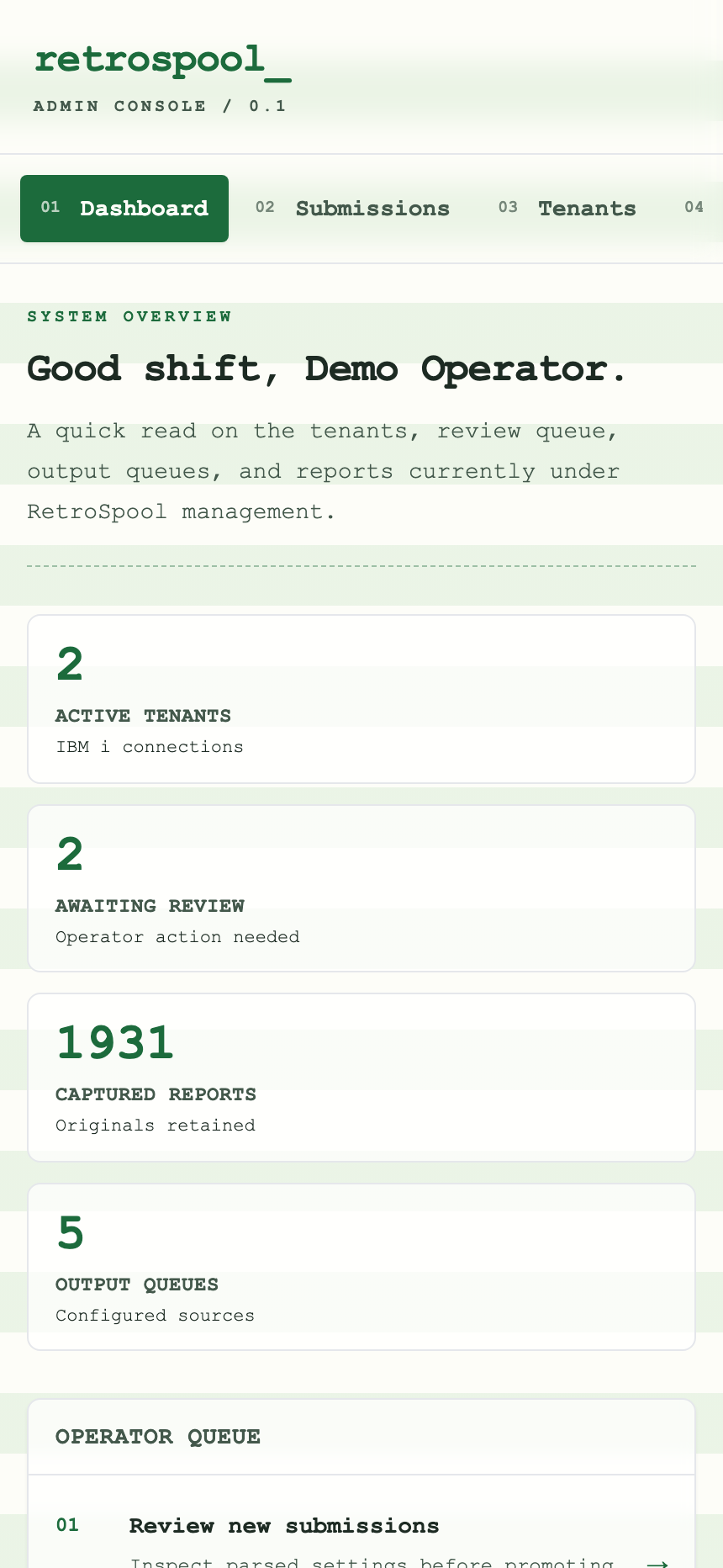

RetroSpool admin dashboard at mobile width with horizontally scrollable navigation and responsive greenbar-styled summary cards. — **Responsive by default** — the same console works from a phone-sized viewport when an operator needs a quick status check away from a desk.

Stack

Spring Boot 3 · Java 21 (Temurin) · JTOpen · PostgreSQL 16 + Flyway · PDFBox · AWS SDK v2 · GhostPDL (sidecar only) · React 18 · Vite · TypeScript · TanStack Query · Tailwind · Testcontainers (real Postgres, MinIO, and the actual gpcl6 sidecar in CI-style integration tests) · Docker end-to-end — the dev machine needs no JDK.

Every architectural decision — including the ones later reversed, and why — lives in an append-only decision log. Docs drift is treated as a bug.

Status

v0.2.0 — pre-1.0 and honest about it. The capture-and-render core, authenticated admin API, React operator console, and the public HOD/WS submission intake are delivered. Live queue polling and export fan-out remain next — both gated on a real IBM i host, which is also what 1.0.0 waits on.

Connection layer shippedTLS signon via SecureAS400 and a synchronous Test Connection endpoint. The mechanism is wired and unit-tested; a live green signon awaits operator host + credentials (no IBM i emulator exists).
Persistence model shippedFlyway V1+V2, JPA entities and tenant-scoped repositories, write-only SecretResolver, and a reflection gate that fails the build on an un-scoped query.
Capture pipeline shippedSniff → split → store → PCL→PDF render → dedup, plus S3/MinIO landing storage — end-to-end tested through the real gpcl6 sidecar.
Queue poller plannedScheduled *READY polling per output queue with watermark advance. Gated on a live host to validate against.
Export destinations plannedFan-out to S3 / SFTP / FTPS with retry + backoff. Only the S3 landing store exists today.
Admin API & React console shippedAuthentik forward-auth identity, dashboard statistics, tenant detail, submission approval, capture downloads, and Test Connection are wired into the production image.
Public HOD intake plannedThe operator-side review and promotion gate is present; public ACS .ws parsing and draft submission remain a later phase.

The full phased plan and an append-only decision log live in docs/.
